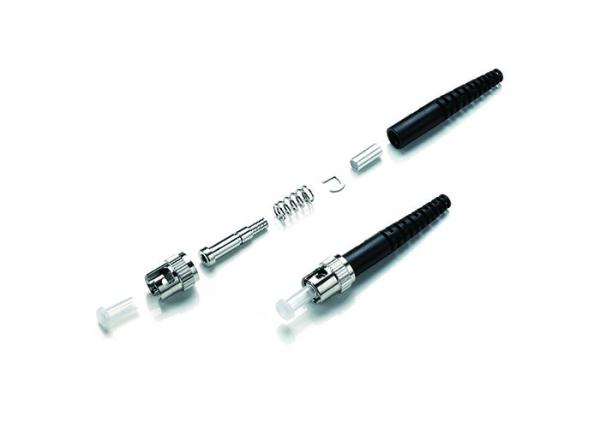

ST/UPC 3.0mm SX SM Fiber Connector Kit Fiber Cable Assemblie For FTTH
Description:
An optical fiber connector is a flexible device that connects fiber cables requiring a quick connection and disconnection, keeping the ends of the fiber properly aligned, let the fiber receiver can get the maximum light from the launching fiber, and minimize the energy loss for the system because of the intervention of the optic link, this is the basic requirement for the fiber optic connector. To some extent, the fiber optic connectors have some effect on the stability and performance of the fiber-optical transmission system.
Fetures Of SCOMM Connector:
Models meet Telcordia test specification GR-326-CORE are available
Models satisfy Vertical Burning Test for Classifying Materials UL94V-0 are available
Available precision crimping tool

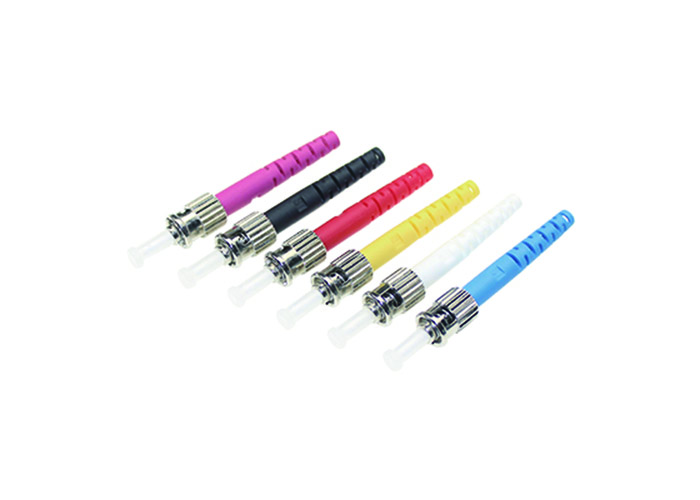

Boot Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)
Specifications:

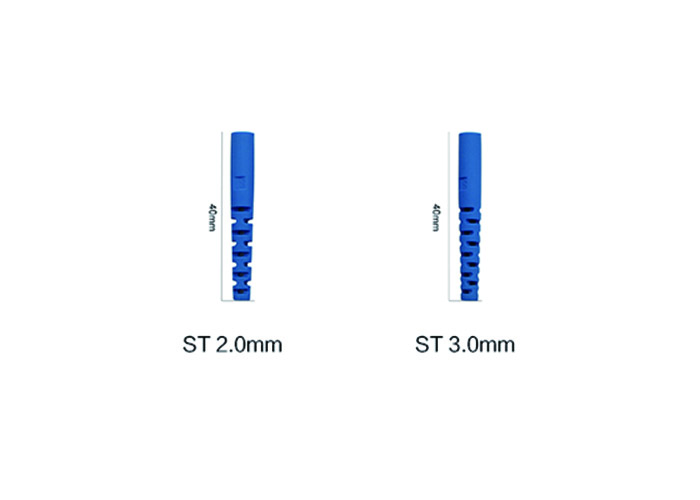

| parameter | ST 2.0mm/3.0mm Connector |
| SM | MM |
| PC | UPC | APC | PC |
| Insertion loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return loss | ≥50dB | ≥55dB | ≥60dB | / |
| operating wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Ferrule Concentricity | ≤1um | ≤4um |
Features:
Low insertion loss and back reflection loss
Ferrule end surface predomed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Boots in a variety of colors
Telcordia style boots
Free-floating ceramic ferrule
Application :
◉ Test Equipment
◉Telecommunication Networks
◉Local Area Networks (LANs)
◉ Data Processing Networks
◉ Premise Installations
◉ Wide Area Networks (WANs)
◉ Industrial, Medical & Military
◉ CATV, Metro
◉ Active Device Termination
Order information:
Connector End A - Connector End B,
Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length
Example:
ST/UPC-ST/APC,
LSZH, 3.0mm, Simplex, G.657A2, 3 meters
Indoor patch cord
FAQ :
1.Do you provide free samples?
yes, we can supply some free samples , the buyer should pay the shipping cost.
2. Can we become your distributor or agency in our area?
yes, it is possible if we do not have an agency or distributor in your area. The best way to start the business and approve your good intentions through several regular orders over a period. we will support very good products to our distributor including samples, price and other supports. please contact with our sales manager for more details.
3.Can you supply OEM products under our brand?
yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.
4, How to proceed an order?
A: First let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customers confirm the samples and places deposit for formal order.
Fourthly we arrange the production.
