Dual Output 10dbm 1550nm CATV Optical Transmitter

Name: Dual Output 10dbm 1550nm CATV Optical Transmitter
Brand: Yogel/OEM
Price: 1 USD

Dual Output 10dbm 1550nm CATV Optical Transmitter Manufactures

Brand Name : Yogel/OEM

Model Number : 1550nm 10dbm

Certification : ISO9000

Place of Origin : Shanghai

MOQ : 1Piece

Price : Negotiate

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs /Month

Delivery Time : 3-7 work days after despoit

Packaging Details : 1 piece /box

Product Name : Mini CATV Optical Transmitter

Application : FTTH FTTB FTTX Network

Wavelength : 1550nm

Output power : 10dbm

Power supply : 110~264V AC

Function : AGC/MGC/SNMP

Contact Now

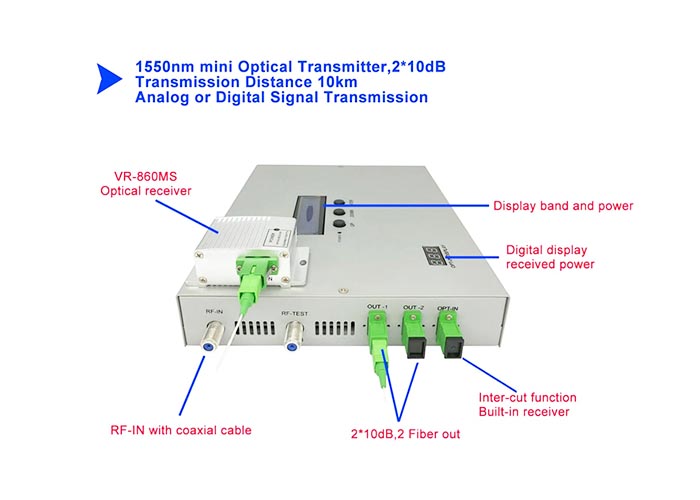

Mini CATV Optical Transmitter Dual Output 10dbm 1550nm Optical Transmitter

Description:

Optical transmitter is designed according to CATV standard. It modulates CATV RF amplitude signal into 1310nm optical signal, and then transmits it to optical node in HFC network through single-mode optical fiber. It is mainly used for TV signal medium-sized network transmission and can be used for many purposes. The high-power optical amplifiers are used for the laying of fiber-to-the-home (FTTH) networks.

Dual Output 10dbm 1550nm CATV Optical Transmitter

Features:

. Built-in high performance imported chip , guaranteed excellent output

. Built-in optical receiver circuit , you can set open and close

. Built-in double Coaxial laser (1550nm)and APC circuit

. Built-in high performance CPU , Precise control of AGC and MGC

. Dual display design, digital tube real-time display optical receiver power size (dBm), LCD display working parameters

. Mini fuselage design and good heat dissipation

Installation:

. Please examine the machine to see if there is distinct . Please examine if the accessories is complete

. Please keep a space about 5cm between machines for ventilation . Please make sure the socket works very well and earthed

. Please keep the fiber's interface clean before connecting the fibers. The connector can choose fc/apc or sc/apc

Safety note:

. The power supply voltage exceeds the allowable maximum range, resulting in damage to the equipment

. The device has a grounding screw,Please pay attention to the public ground connection when using

. Because the laser is not visible to the visible light, it may be harmful to the human eye, so do not look directly at the end of the laser(LASE OUT)

. Non-professionals please do not open the machine, there is danger of electric shock

Specification:

Type	1550 optical transmitter
Wavelength	1550nm
Output power	10dB
Optical return loss	>60dB
Consumption	15w
Working temperature	0~45
Application	FTTH FTTB FTTX Network
Color	Silver
Guarantee	12 months
Dimension	225(L)180(W)35(H)
Product Keywords	10dbm 1550 optical transmitter

Package Information:

1Piece in a Cartoon

Package size: 25X20X8 cm

Single gross weight:2.00 kg

Our Service

Before Sale:
every product would be under quality control before send away, detailed products test report
related specifications

During Cooperation:
OEM Service Offered, lable , packing
Design Service Offered, shape , color
Buyer Label Offered

After Sale:
Any problems on the product, please contact us

warranty: 1~2 years
