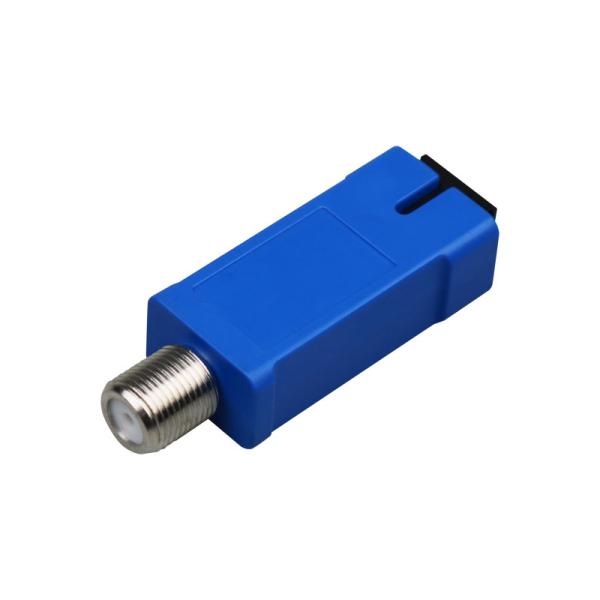

SC/APC CATV Optical Node Without 1550nm Filter

Name: SCAPC CATV Optical Node Without 1550nm Filter
Brand: Yogel
Price: 0.3 USD

SC/APC CATV Optical Node Without 1550nm Filter Manufactures

Brand Name : Yogel

Model Number : Passive Micro catv optical ftth node 1550nm

Certification : ISO9001,RoHS

Place of Origin : Shanghai,China

MOQ : 1 pieces

Price : 0.3USD-2USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 pieces per week.

Delivery Time : 3-5 work days

Packaging Details : with standard carton box or can be OEM by clients.

Product Name : CATV Optical Node

Color : Blue

Connector : Female RF Connector

Wave length : No 1550nm filter

Contact Now

Optical FTTH Mini Node (Analog Signal 868mhz Singlemode Passive Micro Nodes without 1550nm filter)

Passive optical receiver is an access device designed for the terminal in FTTH network, it adopts the high sensitive optical receiving PIN tube, without power supply, no power consumption. It can be economically and flexibly applied to the integration of telecom, television and interenet.

Features:

1. Plug and play: extremely convenient
2. No external power supply, is its unique advantage
3. Easy to use, the most few maintenance, thunderstruck worry no longer
4. The cheap cost will make the FTTH more widely

Application:

FTTH/CATV receiver
Other analog transmission system

Material	High quality brushed aluminum case or plastic case
Wavelength	1310&1490&1550nm
Input optical power	0dbm~-12dbm(analog and digital)
Return loss	>45dB
Optical connector	SC/APC
Bandwidth	40~862MHz
Flatness	±0.75dB@40~862 MHz & 1006MHz
RF output port level	≥16dB
Output port level	>55dbuv(-7dBm)
CNR(note1)	≥51dB
CTB(note1)	≥65dB
Working temperature	-25℃ ~+ 45℃
Output port	1
RF output impedance	75Ω

SC/APC CATV Optical Node Without 1550nm Filter
